TERIA terminal,
free yourself from dead zones

Get centimetre-accurate corrections in real time with the TERIA Terminal, which combines TERIA and TERIAsat services on all your GNSS receivers, even in the most difficult areas (dead zones*).

*an area not covered by a mobile network. No mobile operator covers this sparsely populated territory, which is usually located in rural areas.

Goodbye to dead zones

The TERIA Terminal is a multi-source modem that can provide high precision corrections in real time. Thanks to its double reception, the terminal receives corrections from both the cellular network and the satellite network.

It is possible to connect to TERMINAL TERIA via different sources :

Wi-Fi
Bluetooth
Serial cable (optional)

This modem integrates intelligent management of the various sources of NRTK corrections or corrections from SSR models (from TERIAsat) and broadcasts them via the various communication channels.

Material features

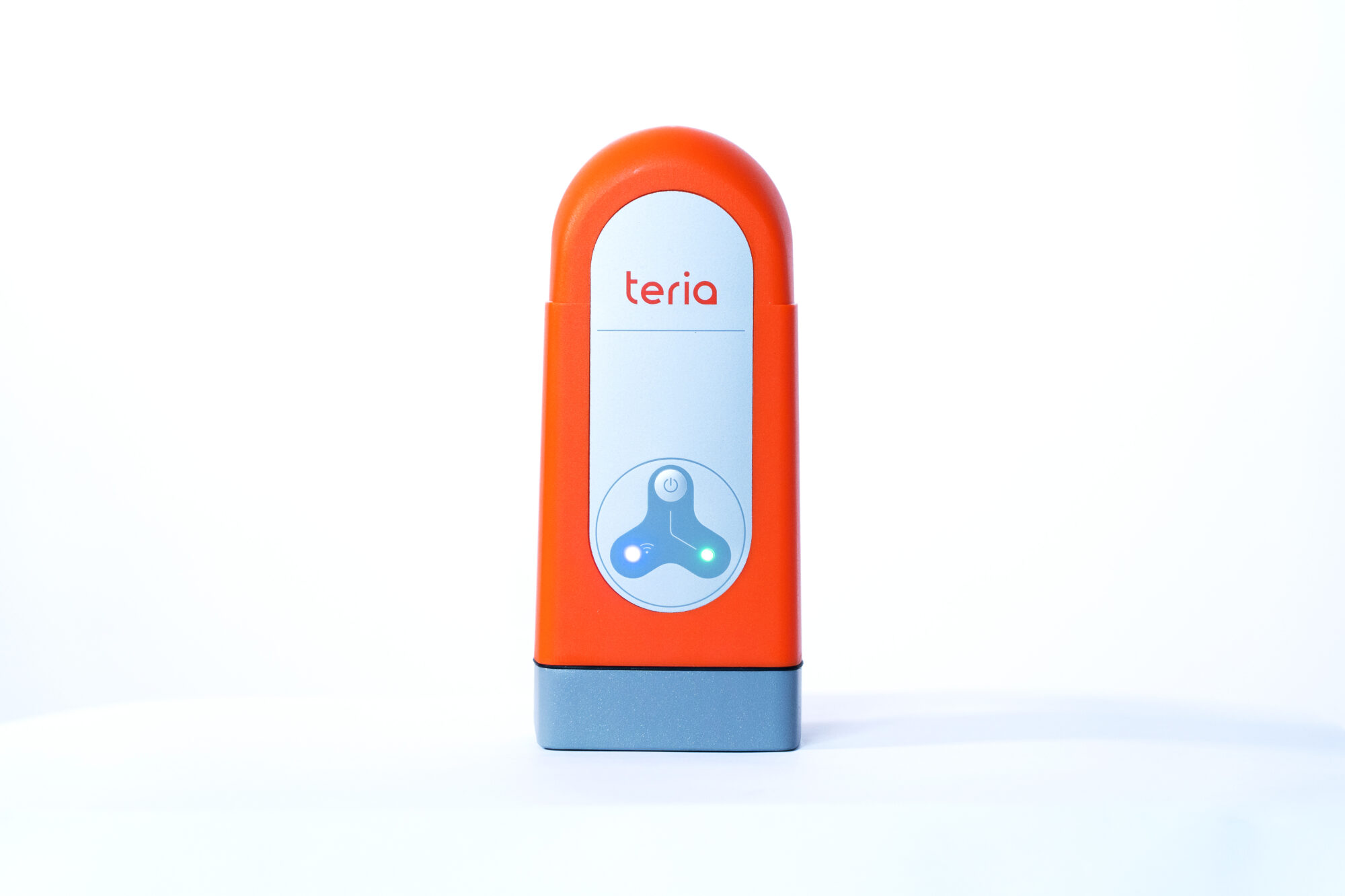

The TERIA Terminal is a GNSS receiver with a single button for easy device start-up, known as the “One Touch” system. Thanks to its smart modem, it is possible to receive corrections from different sources.

The device enables an automatic switchover. Sometimes through cellular communications 4G / 3G / 2G or satellite communications with L-Band.

In order to get the L-Band data, the internal antenna must receive the TERIAsat satellite signals.

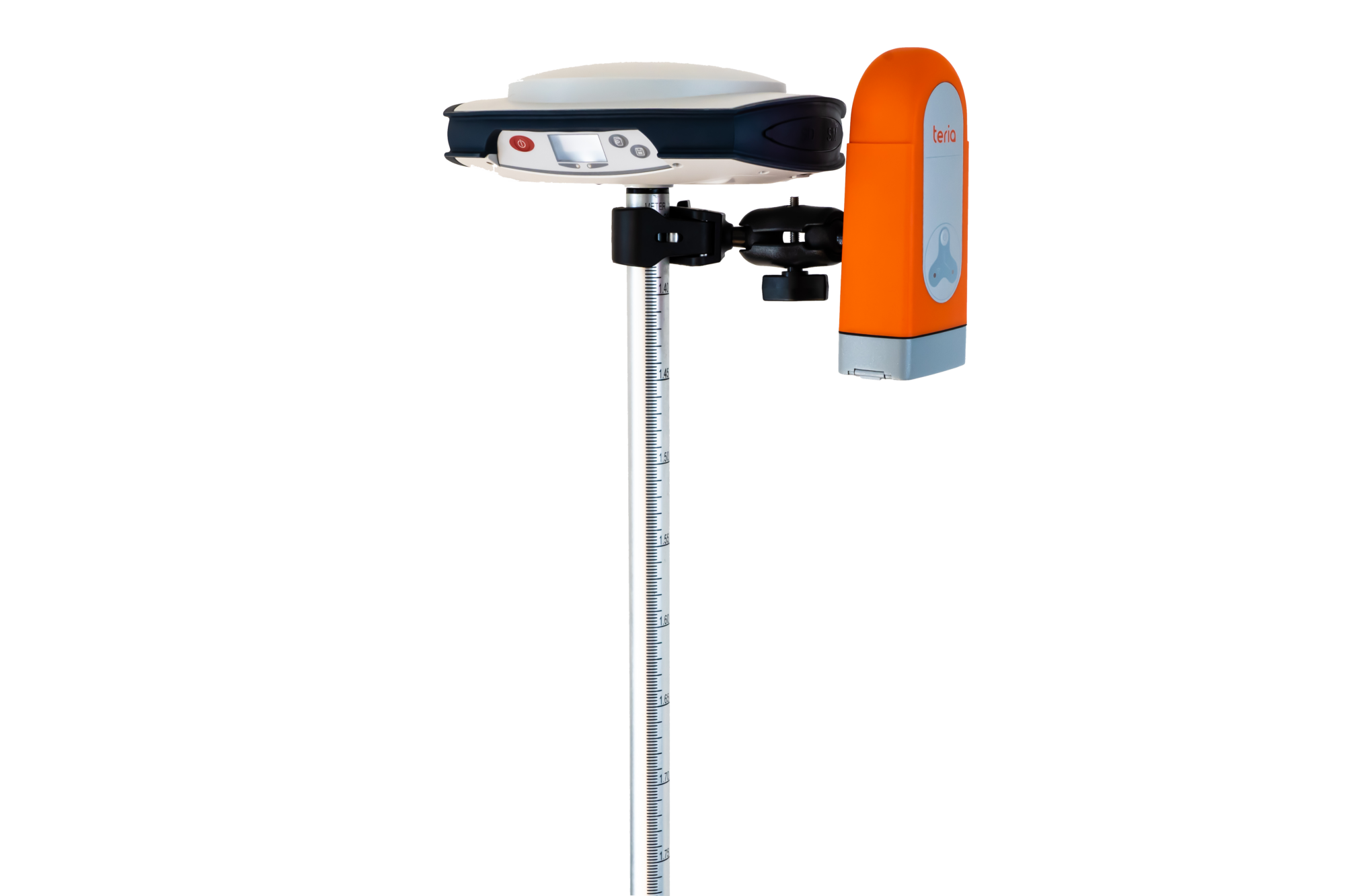

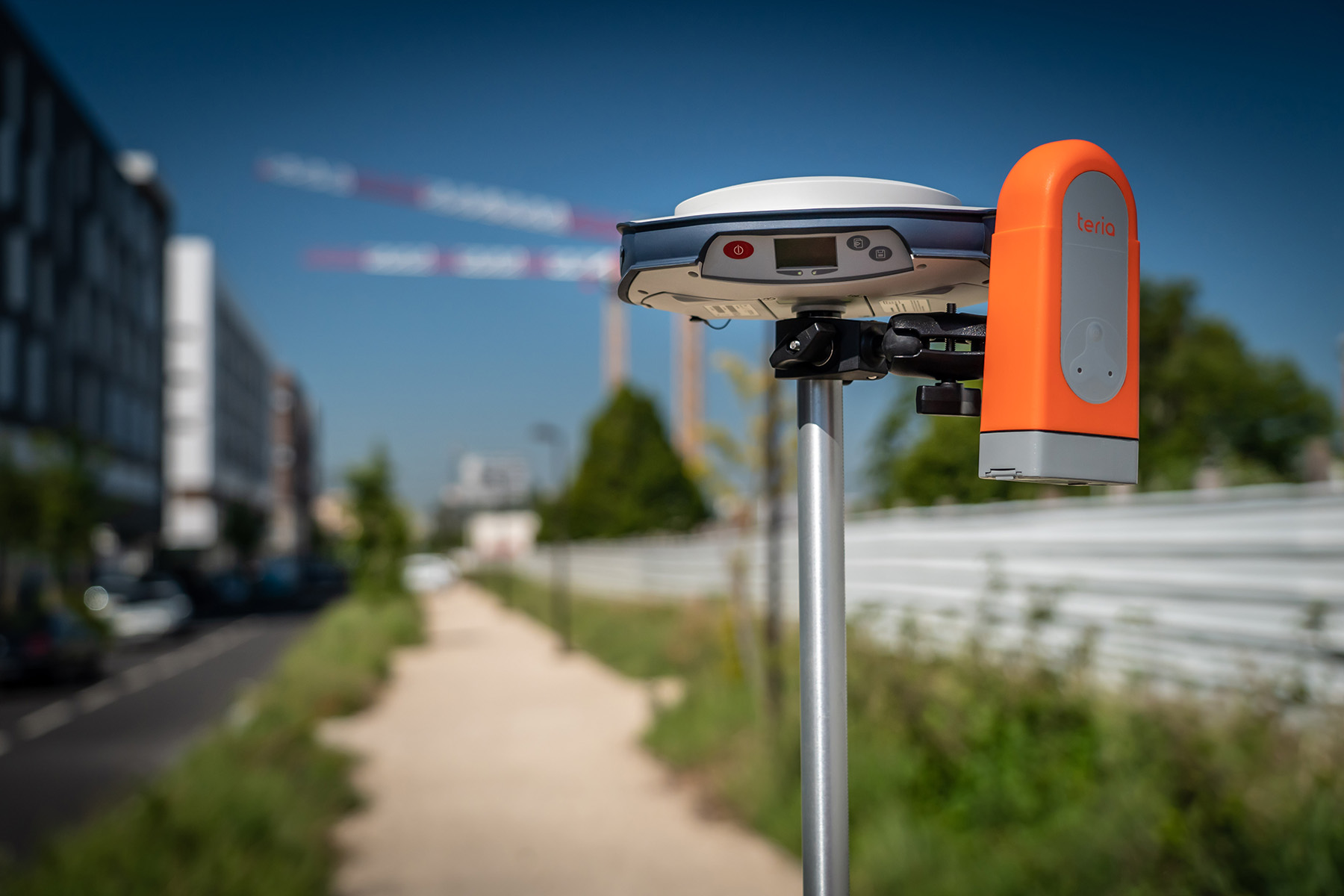

To do this, it is advisable to install the TERIA Terminal at the top of the cane to have your GNSS antenna and the TERIA Terminal at the same height.

The L-Band system

The L-Band system refers to the operating frequency range of 1 to 2 GHz in the electromagnetic spectrum.

The L-Band wavelength range is 30-15 cm.
L-Band is one of the main operating ranges used by various applications such as radar, radio, telecommunications, aircraft surveillance and the American (GPS), European (GALILEO), Russian (GLONASS) and Chinese (BEIDOU) satellite positioning systems.

Performance of the material

The TERIA Terminal has embedded technology and compatibility with TERIA services. Receive your corrected data easily and quickly even in the most difficult areas.

The TERIA Terminal offers an ultra fast convergence time for all application sectors related to air, land and sea. Drone; Topography; Agricultural Robotics; Construction; Bathymetry; the TERIA Terminal is an all-rounder.

Receive corrections in seconds with an accuracy of 1-2cm over the TERIA service coverage area.
